Polyurethane V-Ribbed Belts

EKE Polyurethane V-Ribbed Belts have the following advantages:

• Higher efficiency rate (low temperature development)
• Withstanding high shock loads
• Suitable for fixed center distance applications
• Increased transmission capacity (up to 50 % higher than with conventional v-belts
• Space saving (small pulley diameters)

Product Characteristics

• Temperature resistant from -30° to +80°C
• High flexibility
• Particularly resistant to environmental influences like ozone and effects of the weather

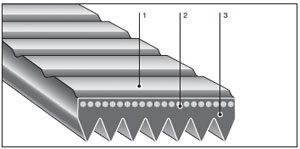

  Belt Construction



  • Polyurethane back
  • Polyamide tension members
  • Polyurethane ribs

  Dimension and Size Marking





  Standard Sizes

  Section	Pitch p [mm]	Thickness h [mm]	HEight of ribs b [mm]	Angle [ ° ]
  H	1,60	2,50	1,00	40
  J	2,40	4,00	2,30	40
